Availability: currently about 3 weeks from order date.
The Eventuri carbon air intake for F87 BMW M2 Competition is a system designed to allow the turbos to work more efficiently. By replacing the stock air box system with Patented Venturi filter housings and smoothly curved tubes, the airflow to the turbos is more laminar allowing them to spool with less drag. Since the M2 Competition does not have air openings behind the grills, we also added sealed ducts to ensure that the intake temperatures stay as low as possible. The combination of our Venturi housings, organically shaped tubes and sealed ducts result in an optimised intake which sets a benchmark for this platform.
The M2 Competition Eventuri system uses the Patented Carbon Fibre Housings with the Gen 2 filters, which provide an aerodynamically efficient airflow path from the filter to the turbos. Not just another cone filter with a heat shield but a unique design which invokes the Venturi effect and maintains laminar flow conditions to reduce the drag on the turbo.
Dyno Tested Performance Gain: 12-20hp, 12-16ft-lb

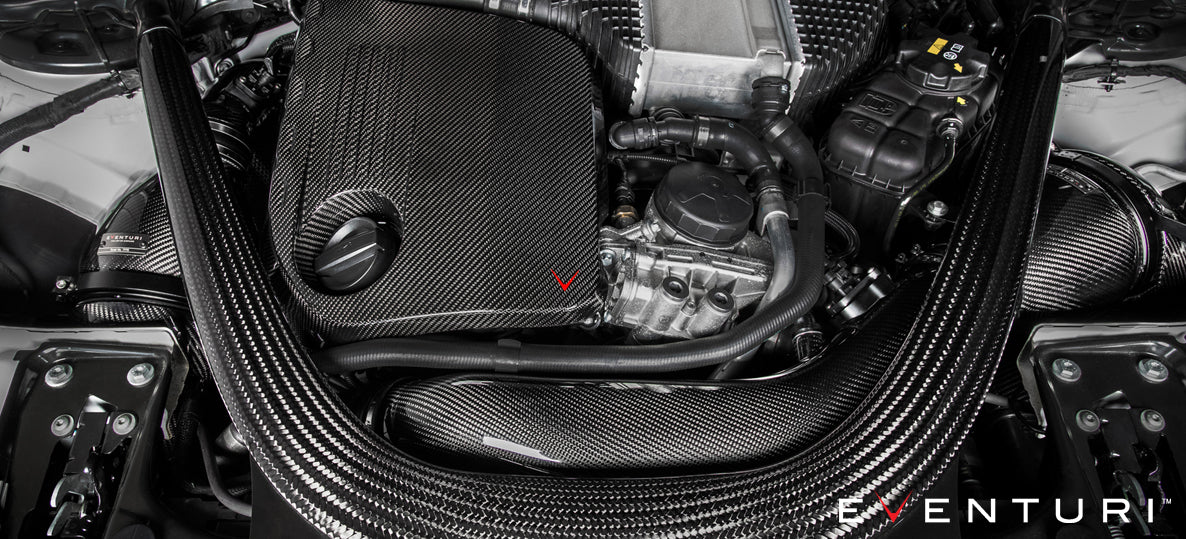

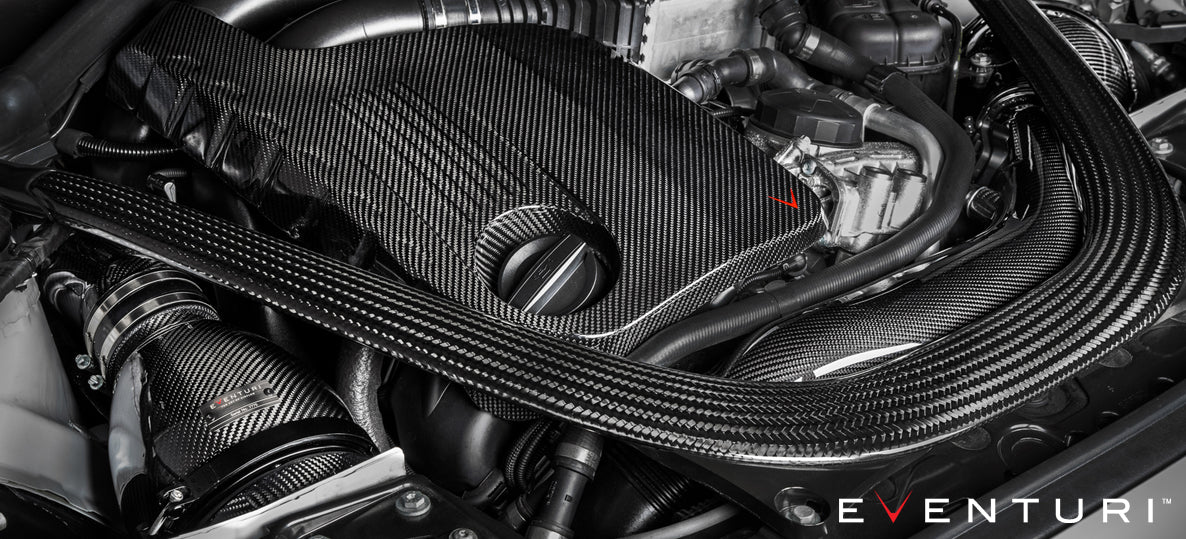

Note: Photos show with optional carbon engine cover (sold separately).
EVE-M2C-CF-INT

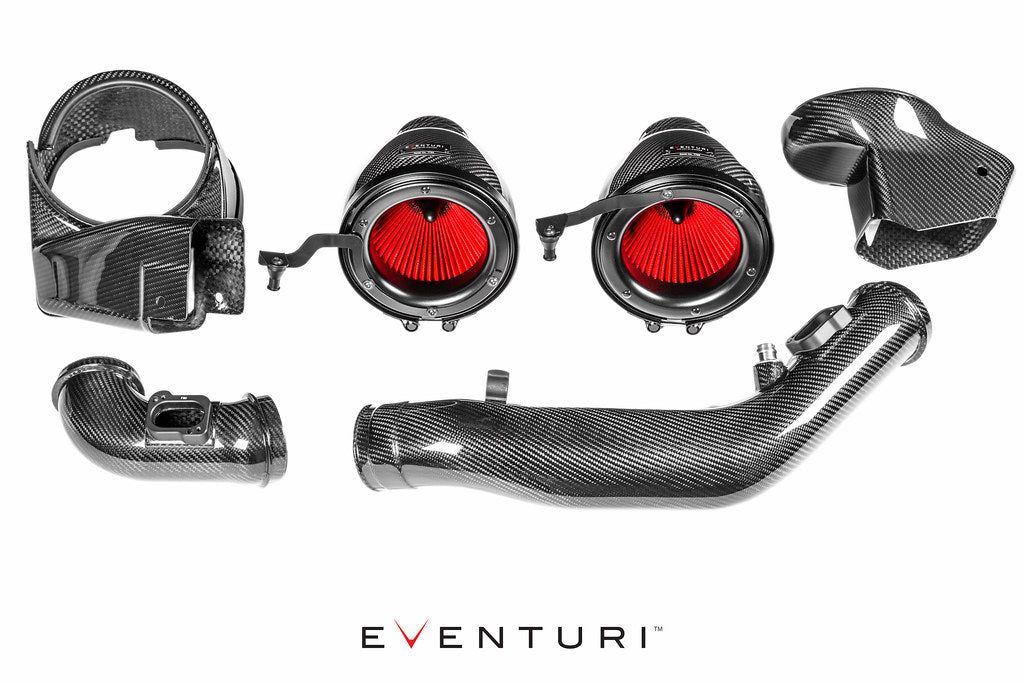

This intake system consists of:

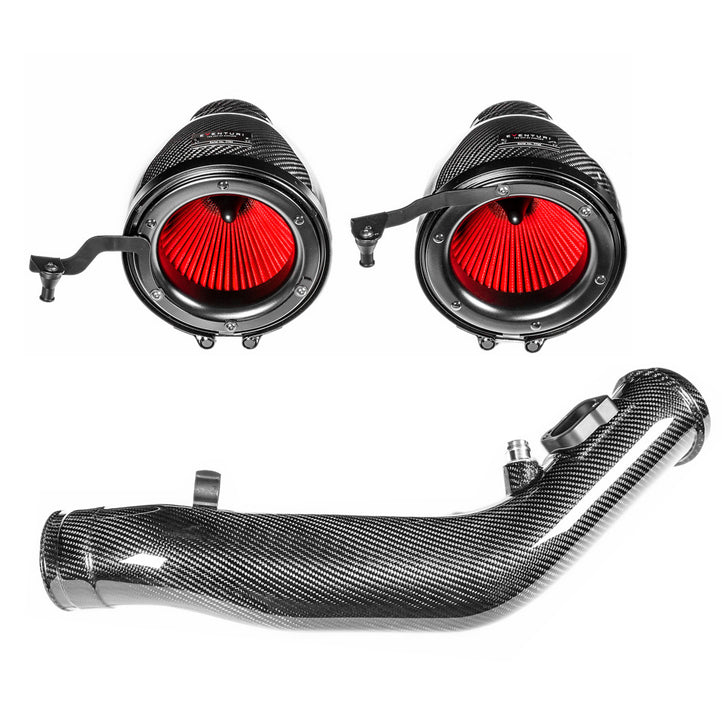

- 2 x Patented Carbon Fiber Venturi housings
- 2 x Bespoke High Flow Generation 2 Filters
- 2 x Aluminium Cowls for smooth airflow entry
- Left Side Carbon Tube with integrated MAF sensor mount
- Right Side Carbon Tube with integrated MAF sensor mount
- 2 Carbon Fiber Intake Ducts
- Laser Cut Stainless Steel Brackets
- High quality Silicon couplers with BMW specification hose clamps
Below is a dyno graph showing the comparison between the Eventuri and the stock airbox on a M2 Competition. The car had no other modifications. As you can see, power and torque are increased through a large portion of the rpm range. This translates on the road to increased part throttle and full throttle response with the car pulling much more eagerly to the redline. The testing was done on the same day back-to-back and temperatures were monitored to ensure consistency. The hood was closed for all runs.
